Duotone Mast Slim 2.0 D/Lab

Duotone Mast Slim 2.0 D/Lab

Original price was: $1,299.00.Current price is: $1,199.00.

High Modulus Carbon Mast

Introducing the Mast Slim 2.0 D/LAB – Duotone’s most efficient mast design to date!

Description

This high-end, one-piece design is crafted for unparalleled performance and control. Featuring a slim, low-drag profile, it ensures playful and precise turning with exceptional rigidity and maximum speeds.

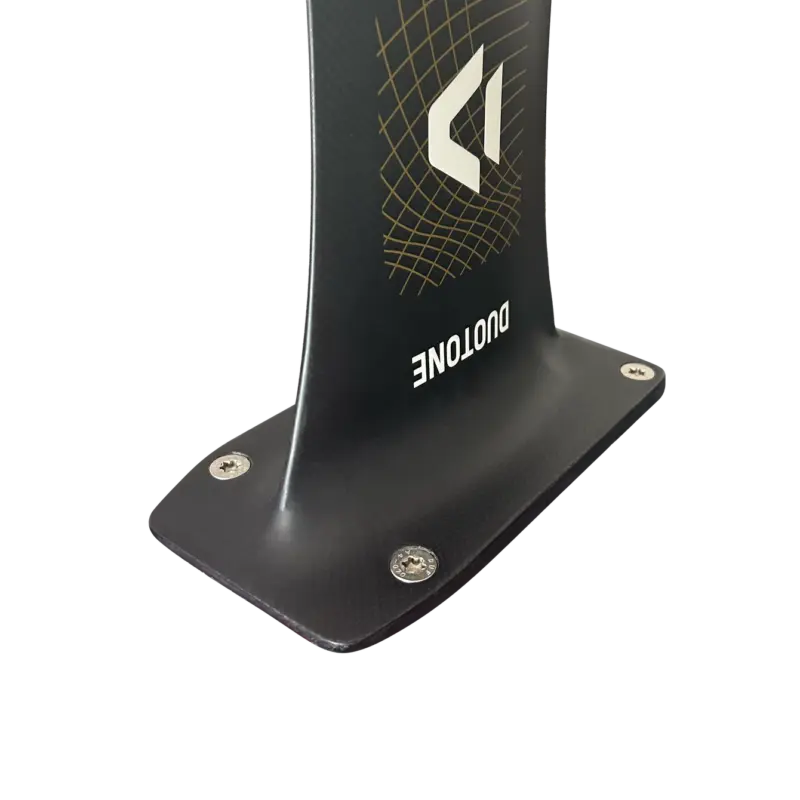

Each size of the Mast Slim 2.0 D/LAB is individually designed for its intended use, incorporating High Modulus Carbon fiber with optimized fiber orientation to achieve superior bending and torsional stiffness. The new drag-optimized base plate design significantly reduces resistance while taking off, touching down and landing jumps. Combined with the tapered chord length and thickness for optimized strength with the lowest possible drag, this mast will take you a huge step forward in terms of high-end performance.

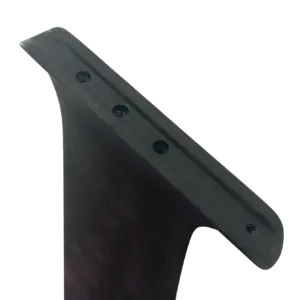

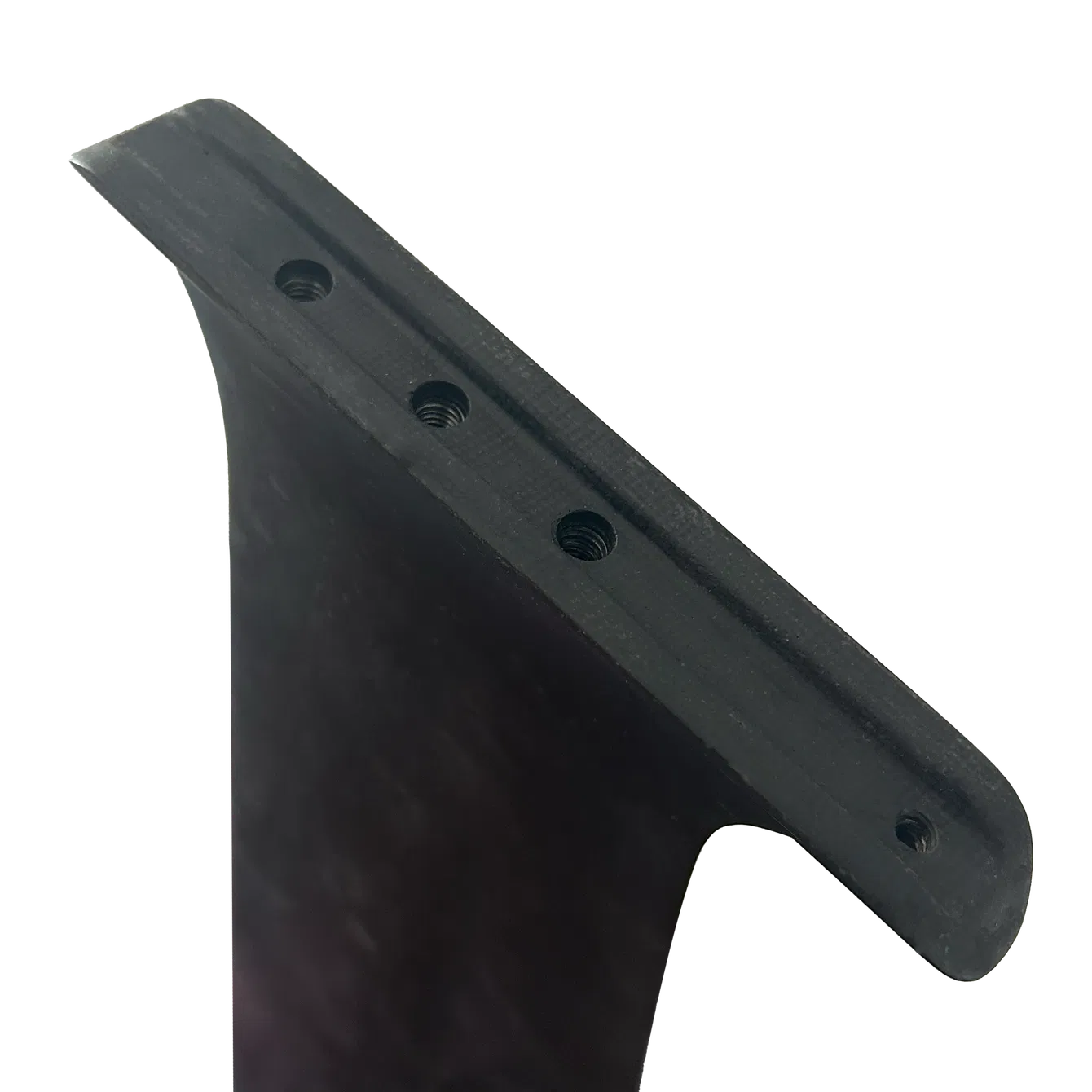

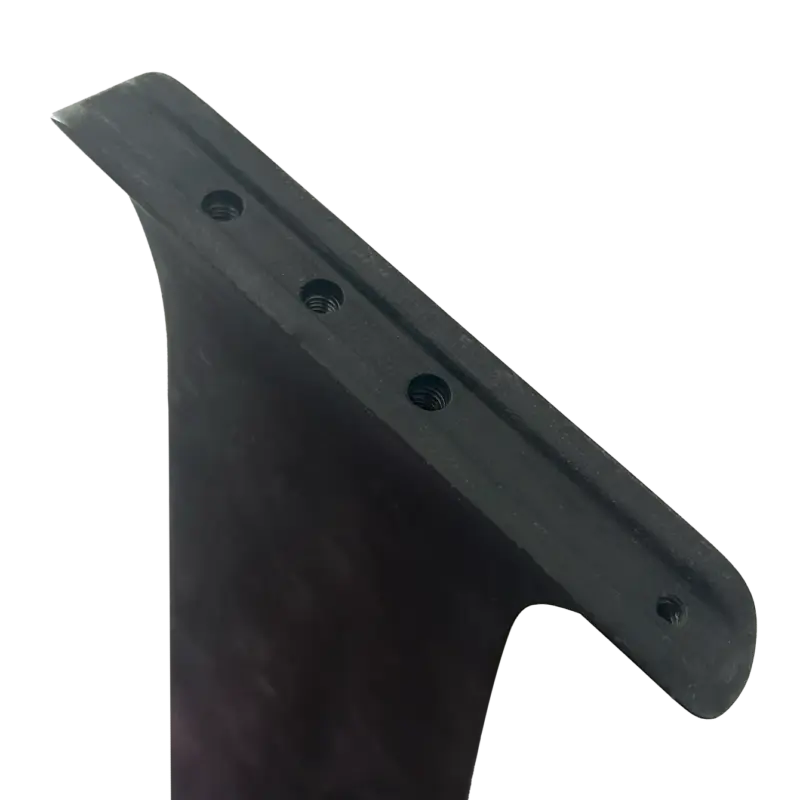

The new Mast Slim 2.0 D/LAB features a profile with high resistance to ventilation, especially focused on the longer sizes, ensuring smooth and uninterrupted performance. The 3BS connection system is compatible with all 3BS fuselages and D/LAB wings, providing versatile and reliable integration with your existing gear.

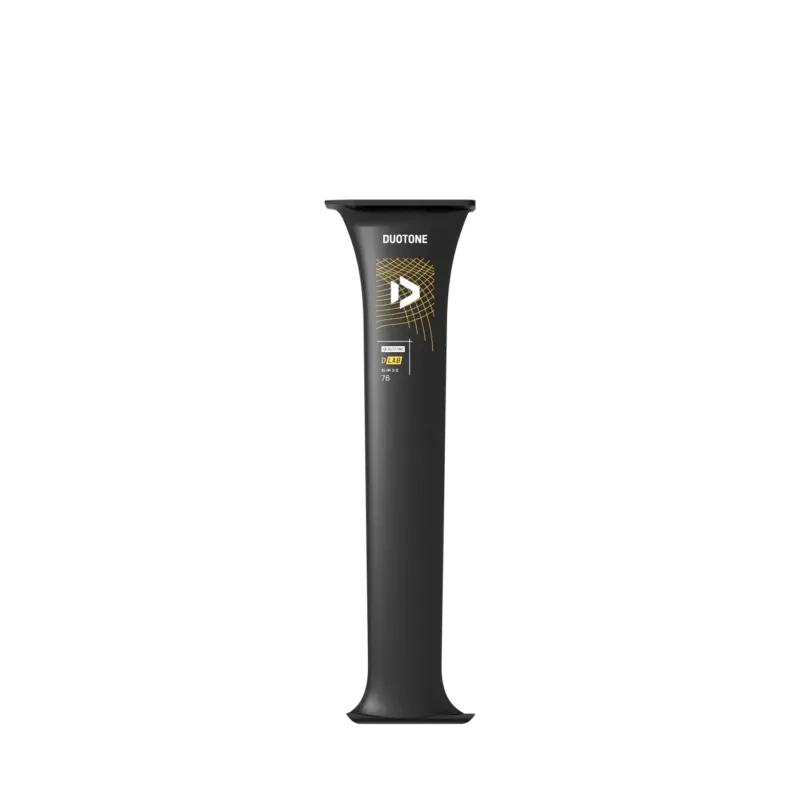

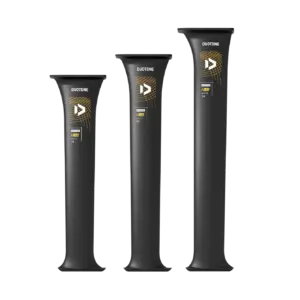

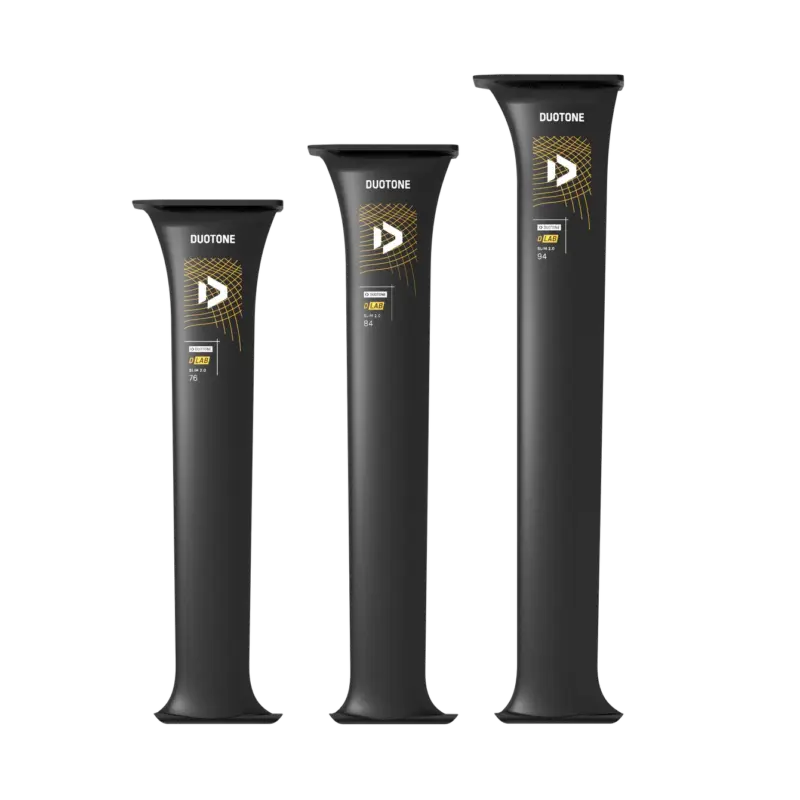

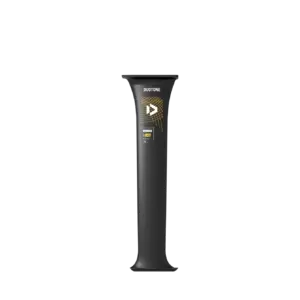

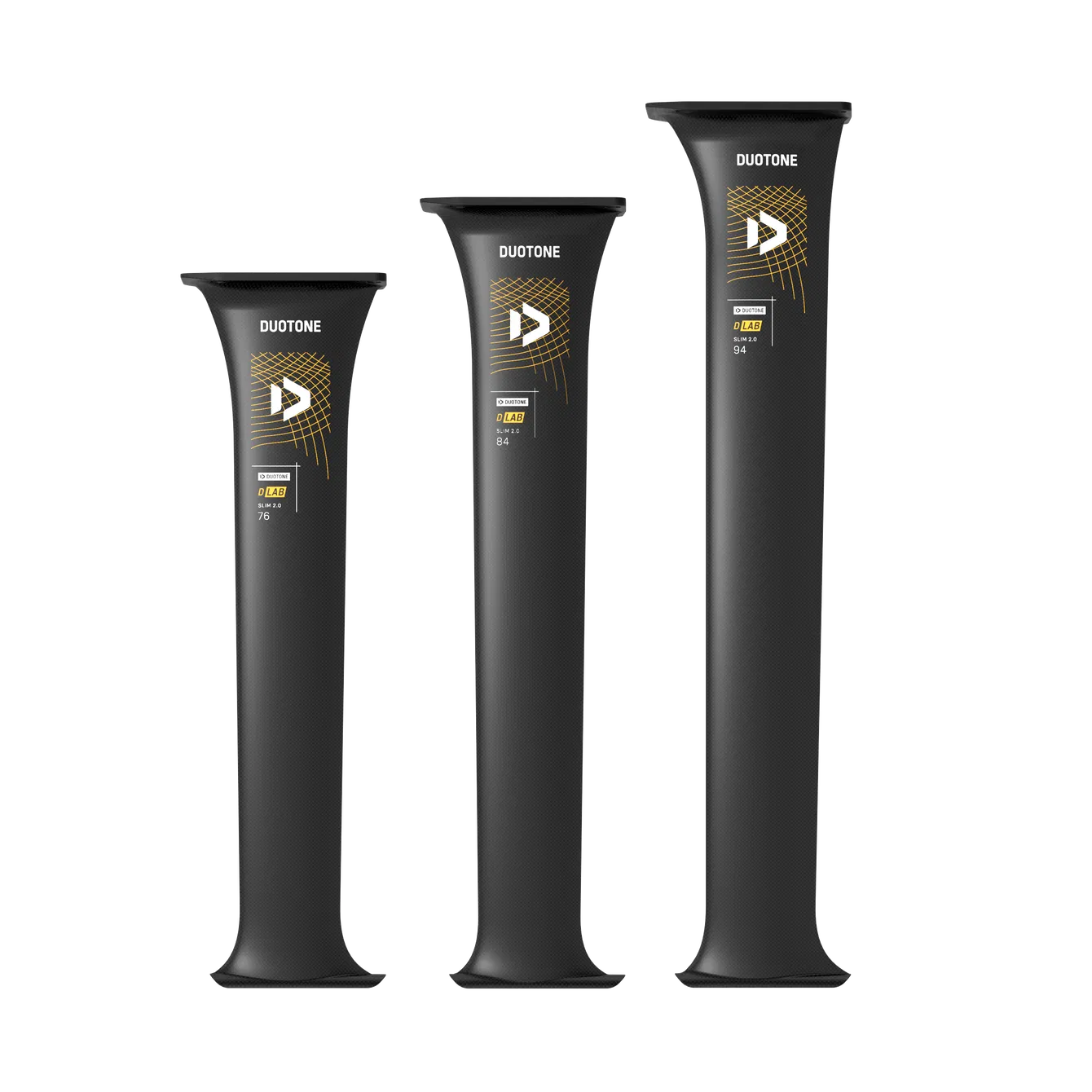

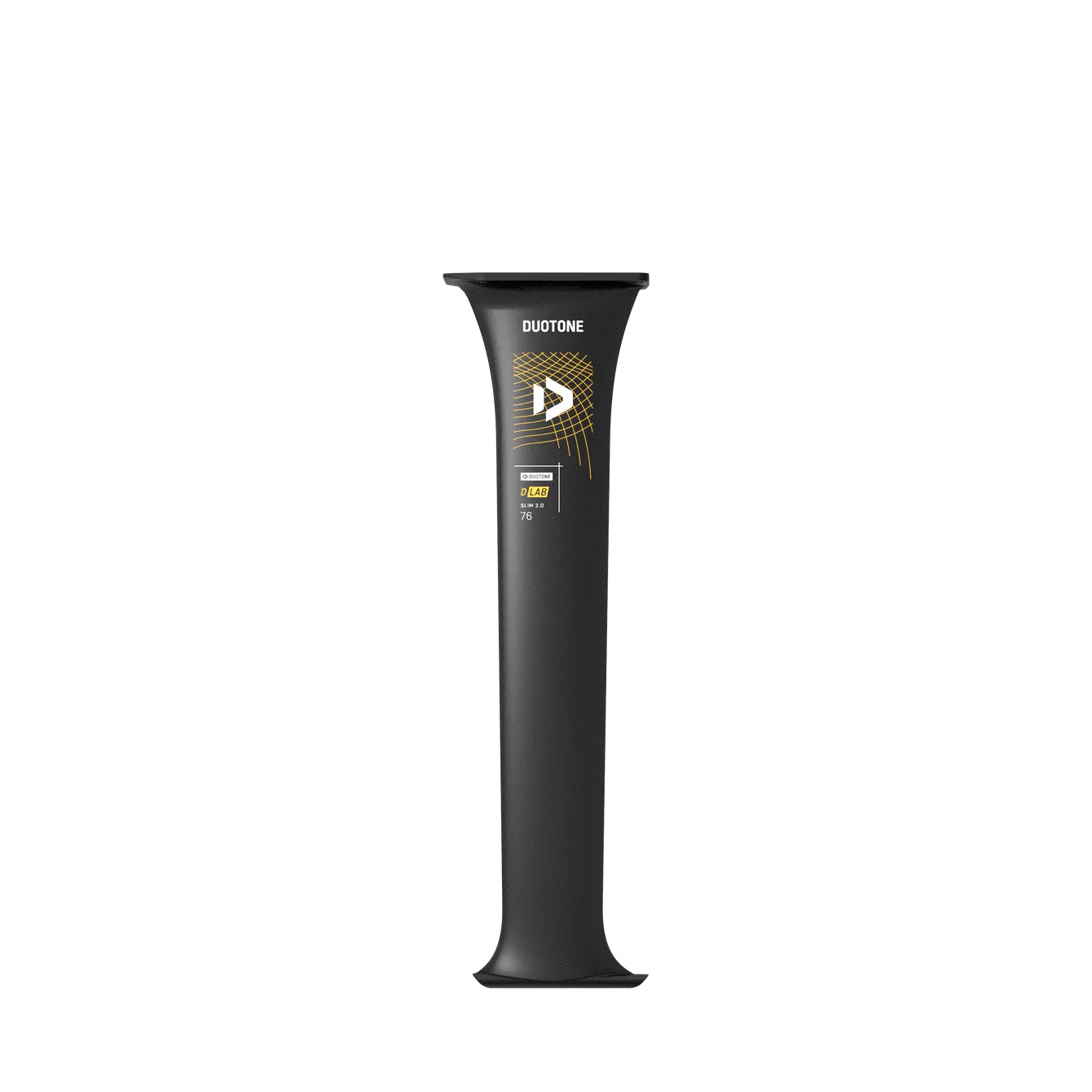

Available in three sizes – 76cm for prone and downwind oriented riders, 84cm for freestyle, freeride and most days in the waves, with the 94cm suited for freerace and larger surf.

Key Features

Full Monobloc Design

The Mast Slim 2.0 D/LAB features a full monobloc design for unparalleled performance.

Extremely Low Drag

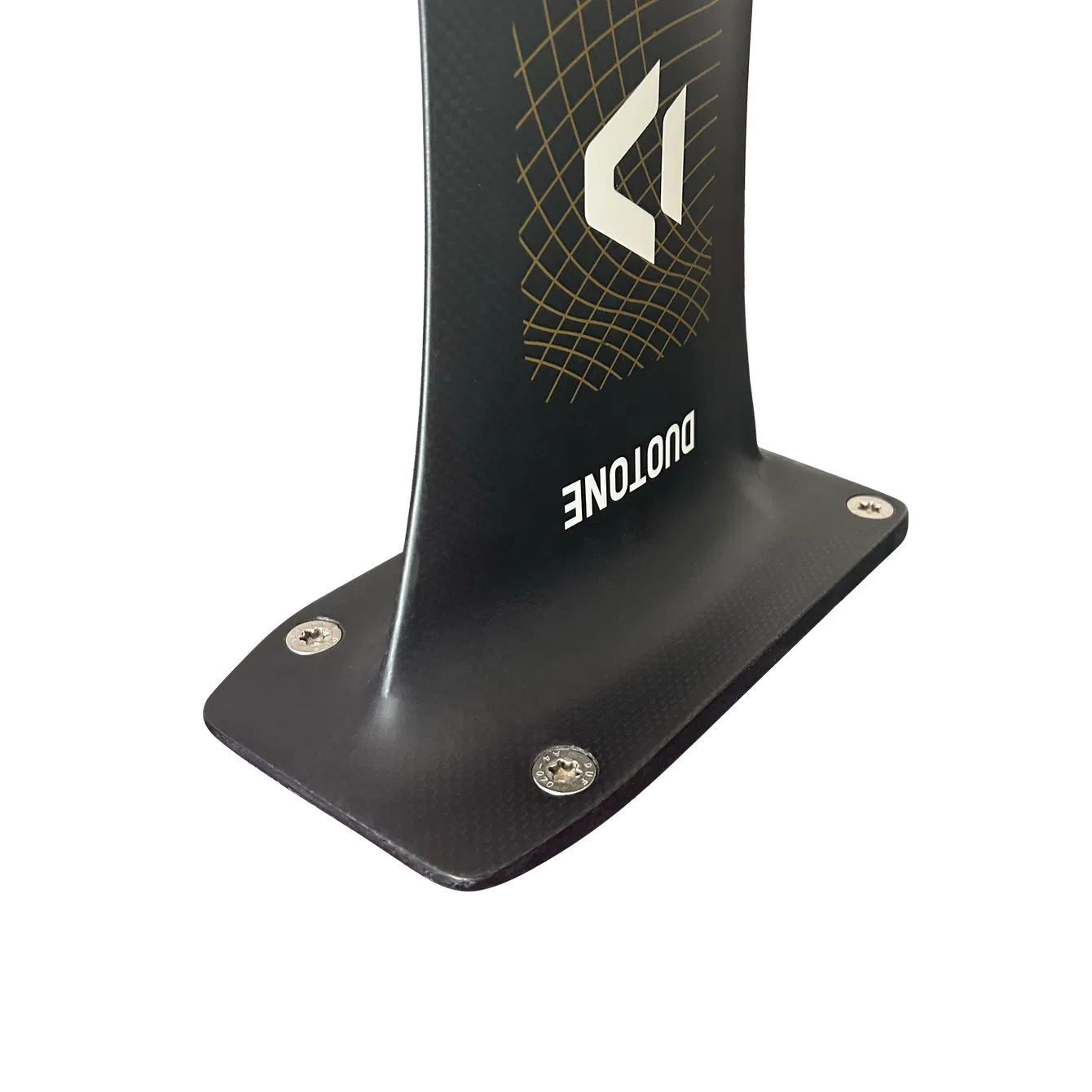

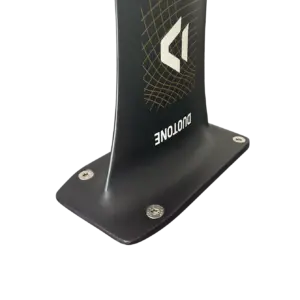

The slim and extremely low drag profile is optimized for each size, ensuring maximum performance in for the intended foiling discipline. The super slim base plate design minimizes drag while pumping up on the foil, landing and touching down significantly.

Turning Behavior

The riding characteristics of the Mast Slim 2.0 D/LAB remain extremely playful. The High Modulus Carbon fiber enables precise turning and aggressive pop for big airs.

Rigidity

Tested to its limits and approved by our Pro-Team, the Mast Slim 2.0 D/LAB is our most rigid High Modulus Carbon mast yet. Each mast size is individually optimized and pushed to its limits in every foiling discipline.

Sizes and Specifications

Length (cm) 76cm 84cm 94cm
Chord (mm) 108mm 110mm 118mm
Thickness (Thinnest Point in mm) 13.5mm 14.5mm 13.5mm
Weight (KG/Tolerance: +/- 5% Possible) 1.85kg 1.88kg 2.20kg
Screws 3BS 3x M8x50 TX45 3x M8x50 TX45 3x M8x50 TX45
4th Screw 3BS+ (Not Included Comes With the Matching Tail) 1x M6x25 TX30 1x M6x25 TX30 1x M6x25 TX30
Rec. Torque  15NM M8/10NM M6  15NM M8/10NM M6  15NM M8/10NM M6
