Foil Drive Assist Max and Slingshot One Lock V2 Integrated Mast Bundle

Price range: $5,870.00 through $7,123.00

Foil Drive Assist Max and Slingshot One Lock V2 Integrated Mast Bundle

Price range: $5,870.00 through $7,123.00

With the motor fully internal, the setup simplifies installation, reduces drag, and delivers more low-end torque and longer sessions on the water. The sleek, pre-installed integration ensures uninterrupted foiling, whether powered or unpowered, and keeps the lines of your mast clean and professional.

Questions before you buy? Call the shop: (321) 252-5483

Foil Drive Assist MAX Gen2 Unit

Build your kit below: choose your battery and your motor. The price updates as you choose.

Want to add additional Motor Cables? Click Here



Questions before you buy? Call the shop: (321) 252-5483

Slingshot Foil Drive One Lock V2 Integrated Mast

Description

The Foil Drive Assist Max x Slingshot One-Lock V2 Integrated Mast combines the high-power, long-runtime Assist Max system with the precision-engineered Slingshot Integrated Mast for the ultimate powered foiling setup. This pairing delivers smooth, efficient power while maintaining the natural balance and performance of your foil. Note: Motor Position is fixed and cannot be adjusted. This bundle includes:
  • Foil Drive Assist MAX
  • Chosen MAX battery
  • Integrated Mast High Power Motor
  • Foil Drive x Slingshot One-Lock V2 Integrated Mast
Integrated Mast Motor Position Assist – 17 cm: A unique motor position designed for beginner, intermediate, and advanced assisted foilers alike. The Assist motor position is ideal for hybrid foiling, where riders use short bursts of power to get up on foil before harnessing natural energy from swell or wind to sustain flight once the motor exits the water. The motor height lets you “surface motor” out to the lineup or travel upwind while keeping the motor tucked close to the board, where it stays out of the way once you’re riding. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control. eFoil: Designed for leisure foiling, flat-water cruising, and experimenting with your foils in new ways. Cruise at sunset or push the limits of your setup in a controlled environment. With the motor positioned deeper in the water for consistent propulsion, the eFoil configuration is a versatile way to extend what’s possible with your Slingshot foils. Tech Specs
  • System Nominal Voltage: 40V
  • Battery Capacity Range: 332-594Wh
  • Max Thrust: 29kg / 63.9lbs
  • Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
  • Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
  • Dimensions with Battery: L525x W125 x H50mm
  • Peak Horsepower: 1854W/2.5hp
  • Sustained Horsepower: 1455W/1.9hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

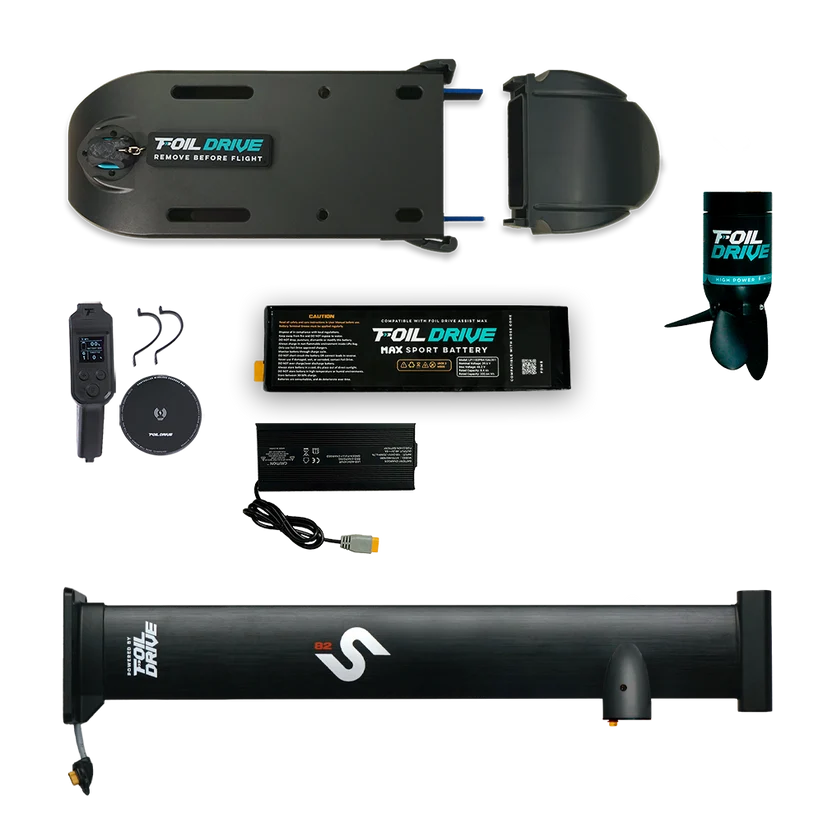

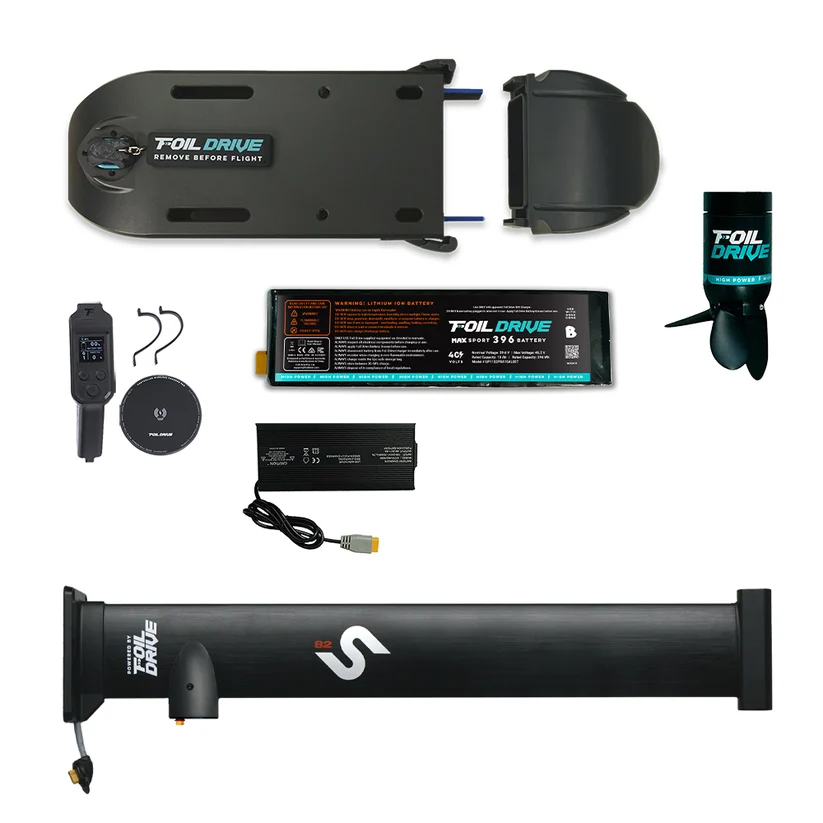

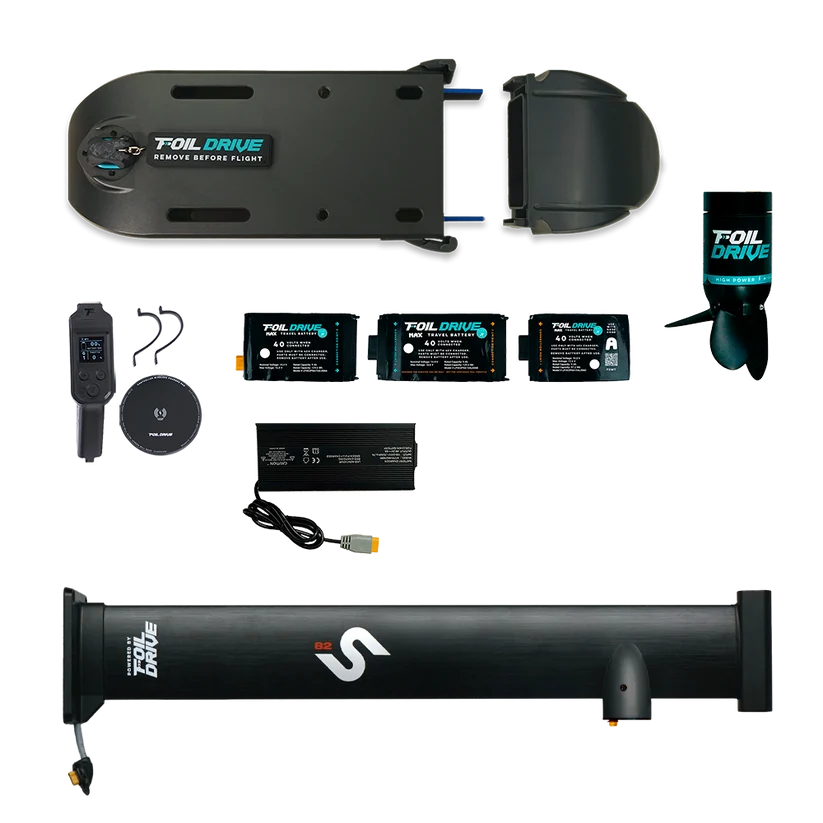

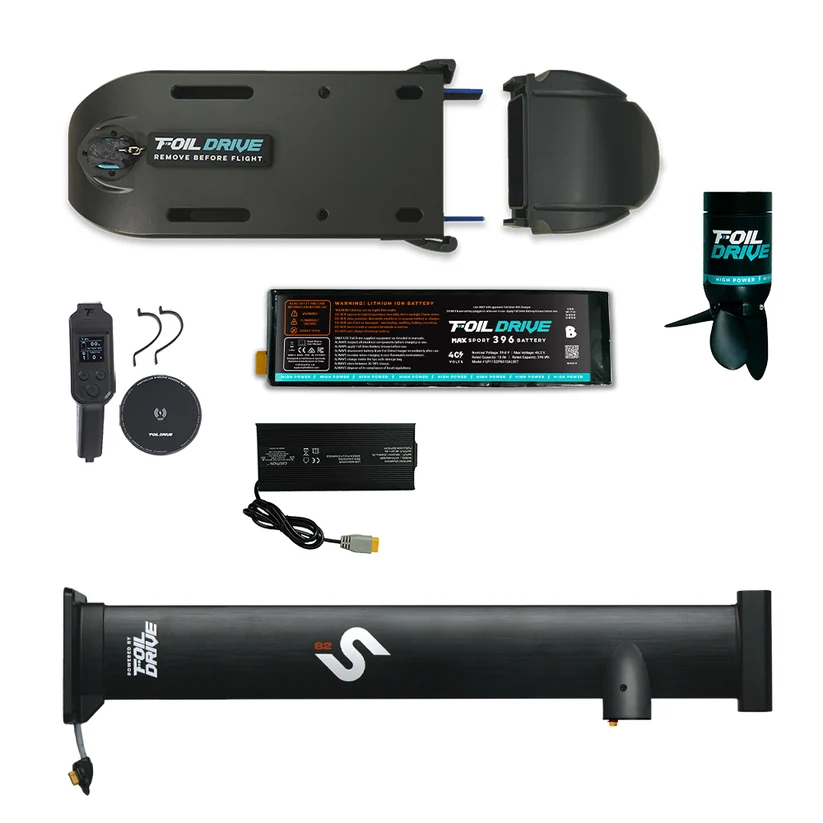

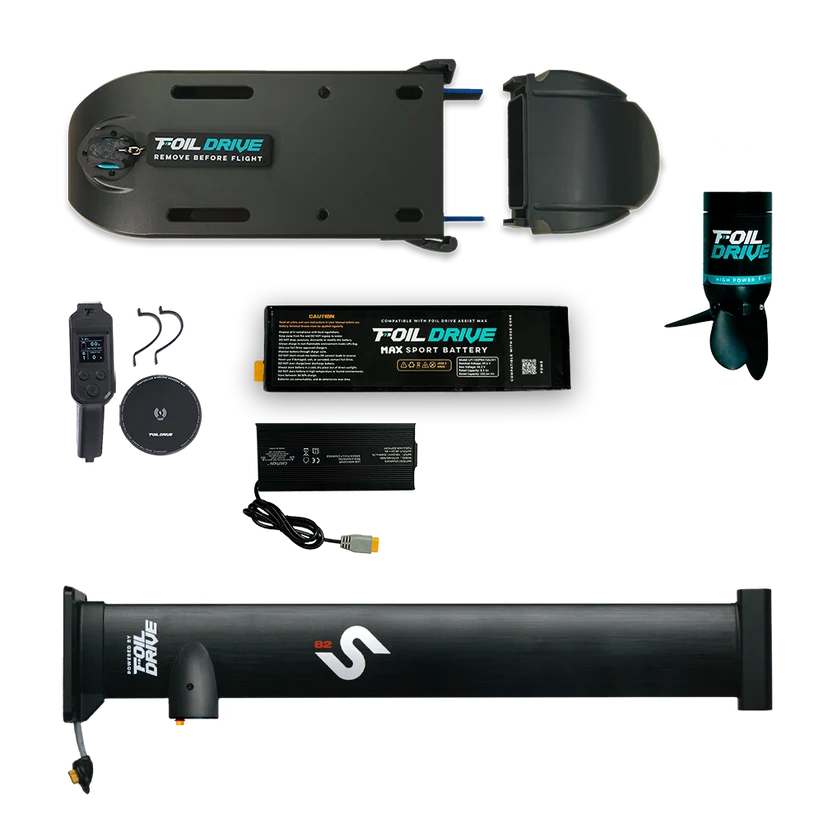

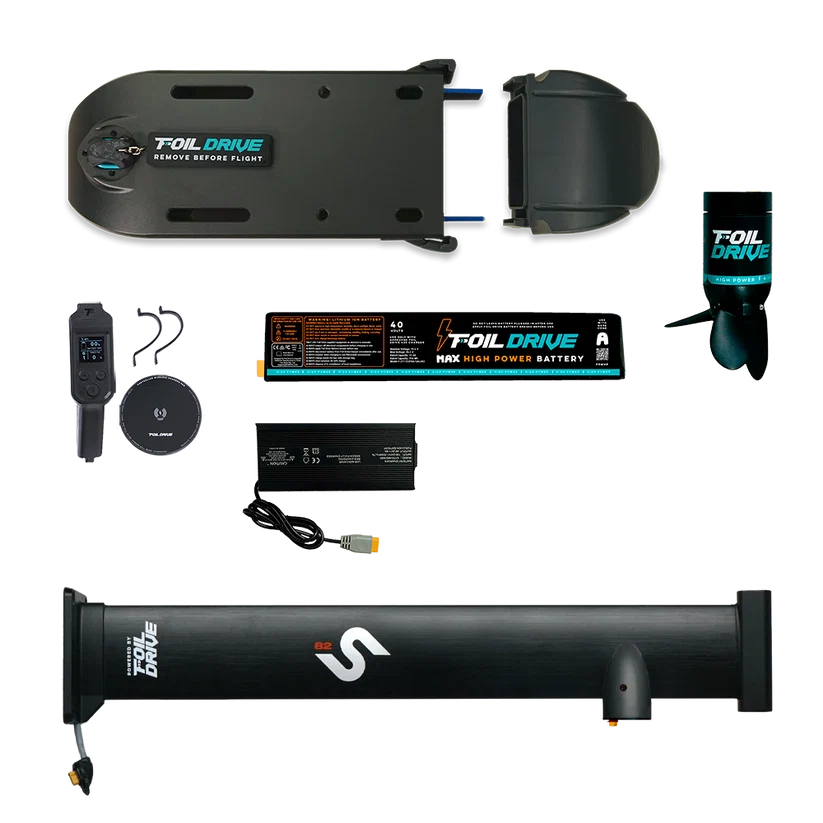

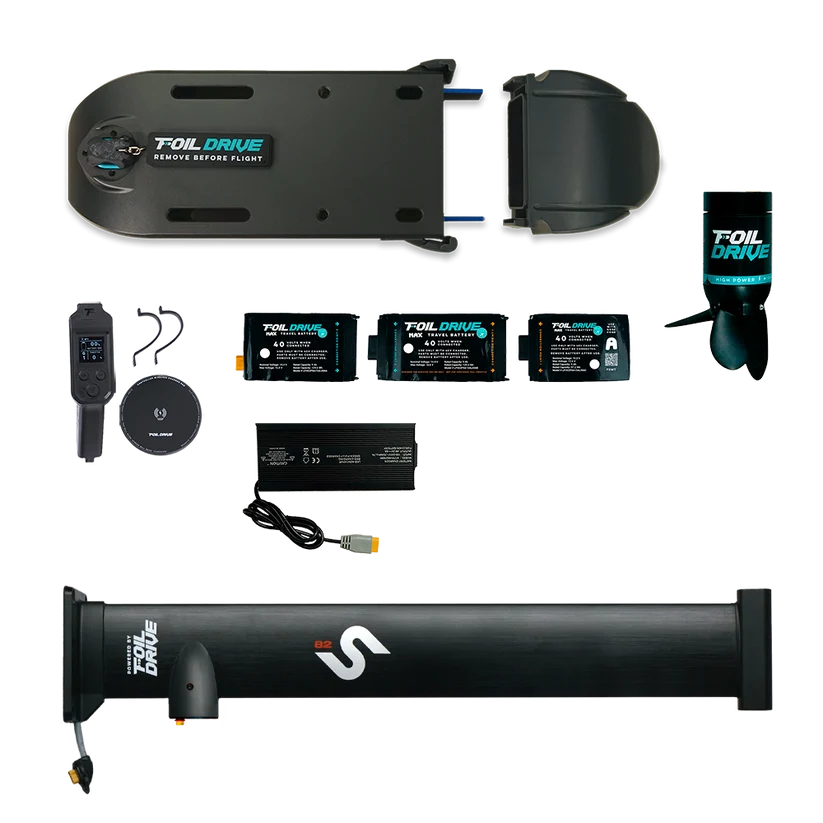

What’s Included
  • Foil Drive Assist MAX
  • Chosen MAX Battery
  • Slingshot One-Lock V2 Integrated Mast
Motor Plug Protector with Keychain Foil Drive Nose Cone A Foil Drive Nose Cone B Foil Drive V3 Controller Foil Drive Controller Wrist Strap Foil Drive Controller Wireless Charge Pad Micro USB Cable 40v Standard Foil Drive Charger 4amp 1x Mast Cable Guide 23cm each 2x Mast Track Foam Inserts 2x Nose Cone Rocker Pad 2x Battery Grease 4x M8 Assist MAX Mast Plate Bolts 80mm 4x M6 Assist MAX Mast Plate Bolts 80mm Foil Drive 2.5mm Driver Pick Tool Torx T40 Tee Handle Driver Torx T30 Tee Handle Driver Foil Drive Cleaning Cloth Foil Drive Gen2 Carry Case Foil Drive Mounting Bolt Bag – 4x M8 Locking Tee Nuts – 4x M6 Locking Tee Nuts – 4x M3 x 20mm Bolts for Locking Tee Nuts Foil Drive Motor and Pod Bolts Bag – 4x Motor Pod Bolts (M3 x 12mm) – 3x Puck Bolts (M3 x 12mm) – 3x Motor Plug Bolts (M4 x 10mm) Spare Parts Bag – 2x O-Ring Seals – Foil Drive Assist MAX – 2x Latch Assembly – Foil Drive Assist MAX – 3x Motor Plug Bolts (M3 x 12mm) – 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm) – 4x Latch Locking Bolts (M3 x 16mm) – 2x Propeller Bolts (M3 x 30mm) – 2x Latch Pivot Bolts (M3 x 45mm)
