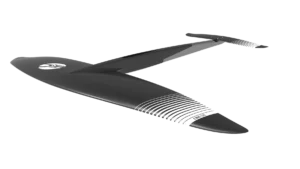

2023 Cabrinha MKii X1240 Front Wing V230 Tail Medium Fuselage Foil Kit Wing Pack

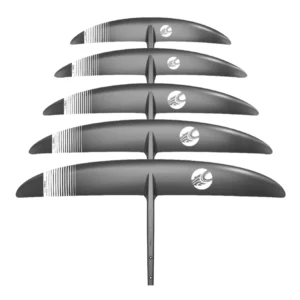

X SERIES MKII Front wiNG

When Cabrinha introduced the X Series wings, they took Cabrinha’s foil program to a whole new level. Through working alongside SINTEF and the University of Norway where we were able to fully breakdown and simulate hydrofoil performance in the worlds largest cavitation tank. From this, they’ve have been able to further evolve the X Series into the industry’s leading all round hydrofoil. Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.

DESIGN PROFILE

Swept LE, Straight TE, Ultra lean efficient profile, moderate anhedral

FEATURES

•Loose and agile feel for superior maneuverability

•Ultra lean profile for forgiving low end and wide speed range

•Engineered thinned out tips for a more manageable water re-entry

•The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while still being easy to assemble and disassemble.•Incredible torsional stiffness.

•Medium aspect ratio design for early lift & stable, forgiving ride

•PMI core for superior strength to weight ratio

•Full prepreg carbon construction for incredible torsional stiffness

KEY FEATURES

LOOSE AND AGILE

Through refined profiles, moderate aspect ratio and an all new wingtip shape, the X-Series MkII is the ultimate foil for maneuverability, no matter the board or sport you do.

ULTRA LEAN PROFILET

The all new ultra lean profile still maintains the forgiving low-end that the X-Series is known for, but now boasts an increased speed range.

FEELING TIPSY

The all new tip design allows you to be able to free the tips in a turn, but be confident that the foil will re-enter without cavitation. This is one specific area of research & testing undertaken at the SINTEF facility.

TAPERED FIT

The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while still being easy to assemble and disassemble.

TORSIONAL STIFFNESS

Through the use of a PMI core and the layered Pre Preg carbon sheets, the X-Series MkII sets a new benchmark for hydrofoil torsional stiffness.

MEDIUM ART

The medium aspect ratio design allows for early lift and a stable forgiving ride.

PMI CORE

The PMI core has a high dimensional stability and superior strength to weight ratio

PRE PREG

Pre coated carbon sheets allow for an extremely accurate level of resin absorption. Combined with an exclusive interweave design that follows the shape and profile of the wings, you have unparalleled levels of torsional stiffness and reflex response.

MODULAR

The modularity of the CAB Fusion system allows you to seamlessly interchange between any of the X-Series and H-Series front wings and stabilizers.

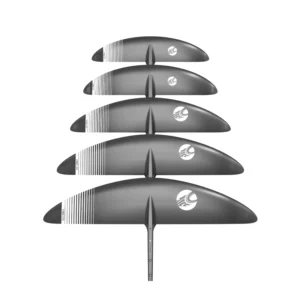

V230 Tail Wing Stabilizer

One of the biggest effects on hydrofoil performance comes from the stabilizers. In a sport that is so diverse in its attributes and styles of riding, you need to have the right product to help you get the maximum performance from your system.

Introducing the new V-Series Stabilizers. V represents versatility, and through the modular Fusion system, you are able to custom tailor your ride. Add a V-Series Stabilizer to any of the Cabrinha Fusion foils and get ready for the next step in performance & usability.

DESIGN PROFILE

Swept outline, ultra lean efficient profile and moderate anhedral

FEATURES

• Optimal efficiency and maneuverability
• Flat center, to downward tips, for perfect balance between locked-in feel and agility
• Single molded components for minimal drag
• Full prepreg carbon construction
• PMI core for superior strength to weight ratio
• 230 cm², WS-400, AR-6.96

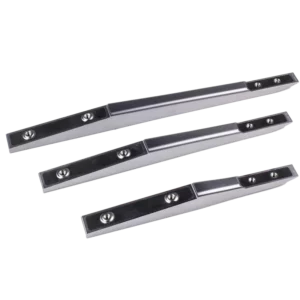

Mkii Fusion Fuselage

One of the smallest but most critical parts of the foil system is the Fuselage. Often overlooked, the Fuselage allows you to truly custom tune your setup based not only on the conditions but also the sport you do. The new Hollow fuselage maintains the same stiffness of the previous version, but in a lightweight structure, giving you increased range and earlier take off and control.

Design Profile

Light, stiff and durable

Features

• NEW hollow fuselage for lightweight performance
• NEW insulated mounting surfaces for Improved durability and longevity
• Helicoils for superior durability and eliminating corrosion.
