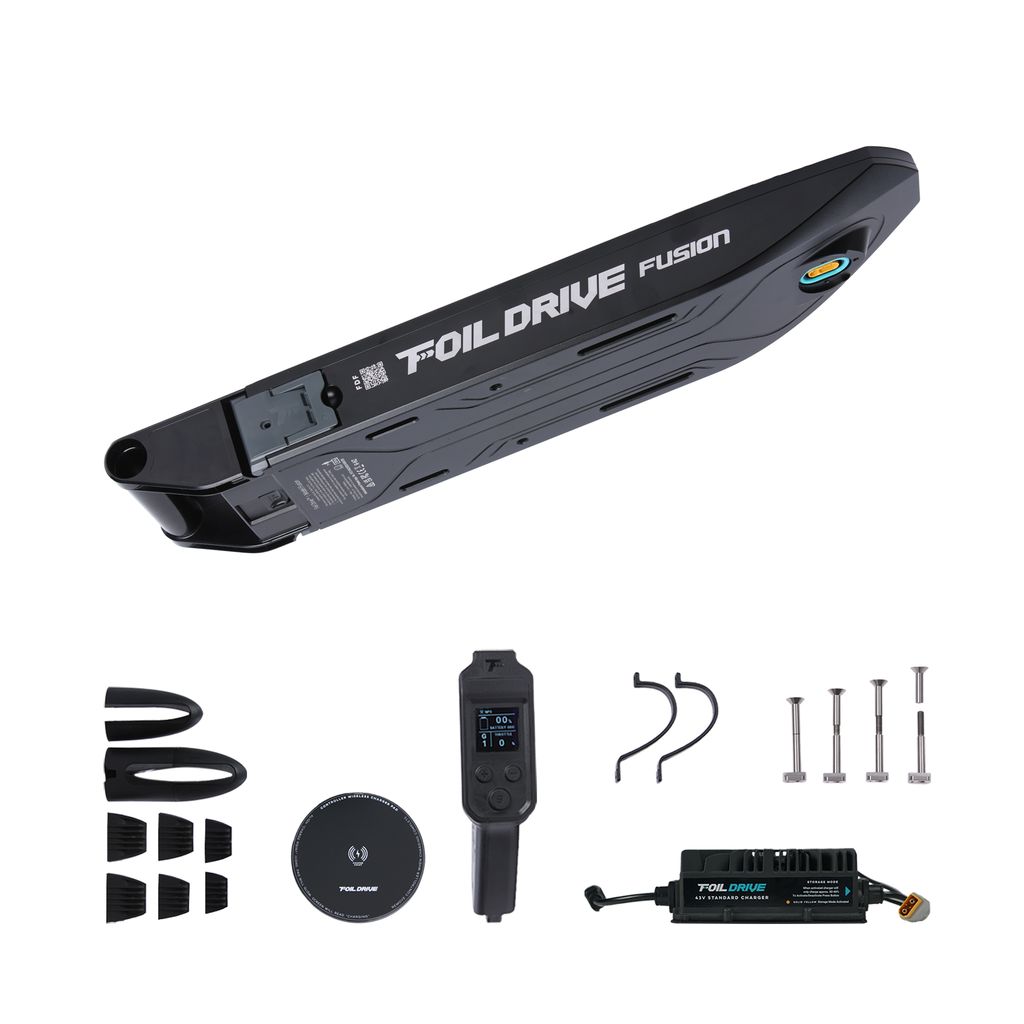

Base Kit Includes: Foil Drive Fusion Unit, Tool Caddy, Split M7 Titanium Bolts, V3 controller, Universal Pod, Tool Kit, 43V Fusion Charger, Foam Track Inserts, Case for Unit.
Please note the Base Kit (no motor, no battery) does not include the Fusion 860 Battery with Caddy or the High Power Motor Complete. If you do not have either of these already, you will need to choose those options as they apply to you for a fully functional kit.
***The Max and Slim batteries are NOT Compatible with the Fusion.***
Feature Highlights
The truest form of a hybrid electric foiling, the Foil Drive Fusion brings together the best of what you’ve come to know and love of a Foil Assist, and what is typically expected of an efoil. Alongside maintaining the light weight, sleek, hydrodynamic form factor of the Assist range, the Fusion brings the higher power and longer runtime. As the name suggests, the Fusion is a true hybrid electric foil system, offering the benefits of both worlds in one, neat package.
While the Fusion has dropped the Assist name, it comes as a welcome addition to the Gen2 lineup. Alongside the Assist MAX and Slim, the Fusion simplifies user customisation depending on their preferences, each product offering a unique balance of power, weight and runtime. Due to technical advancements of the Fusion, sits above in its own sub category, Gen2.5.
Tech Specs:
System Voltage:Â 43.2V
Battery Capacity Range:Â 864Wh
Max Thrust:Â 34kg / 74.9lbs
Power to Weight Ratio (Thrust/Weight):Â 4.35 N/KG
Minimum Install Weight*: 7.9kg / 17.4lbs with Fusion 860 Battery
Dimensions with Battery:Â L658 x W125 x H54mm
App Compatibility:Â Foil Drive App, Android and IOS
Water Rating:Â IP68 Water and Dust Resistance
Power to Weight Ratio (Thrust/Install Weight): 4.3 N/kg
Energy Density (Wh/Battery Weight): 176.32 Wh/kgHow much heavier is the Fusion Compared to the MAX (w/ High Power Battery)? :2.1kg / 4.62 lbs
Add the High Power Motor Complete if you do NOT have an integrated mast or existing motor.
Increase your runtime and enjoy more low end torque with the High Power Motor!Â
Through improved efficiency, the motor uses less power, resulting in more time on water.
Additionally, the motor has an increase in low end thrust, meaning you get a little more when taking off.
These benefits do result in slightly less top end speed, and do increase weight, but only by 130g! A small compromise for an additional 20% runtime.
V2 Motors
The V2 Motor features a sleeker, more hydrodynamic design. With a 10mm extension to the Motor, it now accommodates a motor plug and offers added versatility with Removable v2 Motor Cables to easily change cable length.
When used in conjunction with the Foil Drive Universal Motor Pods and Mast Adaptors, this motor is compatible with almost any foil mast on the market!
The Cable
The complete set includes a full V2 Motor with 20cm / 8″ removable Cable.
Complete your Carbon Integrated Mast with the High Power Motor Three Blade Propeller Set! This product has been designed specifically to pair with Carbon Integrated Masts, offering everything you need assembled ready to plug and play !
The High Power Motor is the perfect choice for maximum power and efficiency. Paired with the Three Blade Propeller Set, it delivers longer sessions and more power during the critical moments of take off!
The High Power Motor is compatible with all V2 Motor accessories, both integrated and non-integrated. These inclusions are specific to that required for Integrated Masts.
NOT INCLUDED:Â Puck, cable and bolts are not included, these required components are pre installed to Carbon Integrated Masts or available separately.
