Cabrinha Wingfoil Package – Macro/Fusion Package

Cabrinha Wingfoil Package – Macro/Fusion Package

Whats included in this package?

  1. Your choice of size for the Cabrinha Macro (4’8, 5’0, 5’4)
  2. Fusion Alloy Mast 70cm with Helicoil
  3. Choice of X Series Front Wing (1950/1600)
  4. Choice of X Series Rear Stabilizer (220/300)
  5. Fusion Carbon Rear Fuselage 346

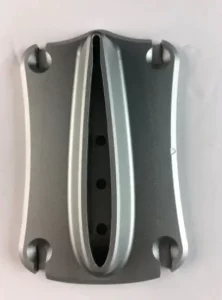

  6. Fusion Hybrid Socket Plate Mount

So basically… everything except the handheld wing you will need to get out there on water!

This product is currently out of stock and unavailable.

-

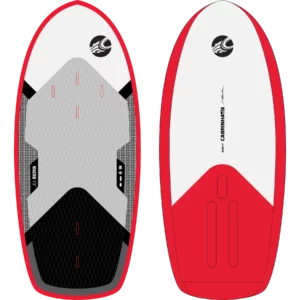

Macro
The Macro is the foil board that has risen to meet the moment.
The Macro is an incredibly compact shape which combines the perfect ratio of length, width, and volume to deliver a performance foil board that is dedicated to the sport of wing foiling.
What makes the Macro so incredible for wing foiling is its quick to fly platform. We’ve optimized the volume distribution to put the float exactly where it’s needed to quickly fly while creating a balanced and nimble board once you are up on the foil. The short but wide platform makes it easy to take off in the standing or kneeling position
The Macro has a subtle concave deck to cradle your feet with or without straps and the tail has a release point which aids in pumping the board whether you are on or off the water.
It has a double concave section in the nose to assist with easy take off and to aid in the recovery during touch downs.
Once flying, the Macro is light, nimble and maneuverable. Ready to respond to your every command.
Foil specific board with focus on maneuverability and easy launch.

  • Short compact design
  • Double concave to flat bottom
  • Concave deck for positive board control when strapless
  • Kick Tail for easier pumping and earlier flight
  • EPS core, light weight and buoyant
  • Durable composite sandwich construction
  • Carbon innegra deck construction with full PVC deck reinforcement
  • 3 or 2 strap insert configuration
  • Standard 9cm adjustable foil mount
Included with the board: M8 Tnuts, full deck pad. (NOTE: 3 or 2 Strap Ultralite Straps with mounting hardware sold separately.  Use the Self Tapping Screws only).

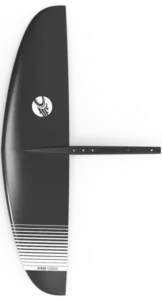

X SERIES FRONT WING

HIGH PERFORMANCE – LIGHT WEIGHT Sizes:  X1600 / X1950 DESIGN PROFILE Swept LE, Straight TE, Lean draft forward profile, moderate anhedral. WING FEATURES
    • Loose and agile feel for superior maneuverability
    • Optimal efficiency and lift
    • Integrated fuselage with tapered fit
    • Incredible torsional stiffness and minimum drag
    • Full prepreg carbon construction
    • EPS core for superior strength to weight ratio
    • Moderate anhedral for a more efficient lift platform
    • Draft forward profile for a forgiving ride and early predictable lift
TECH SPECS
    • X1600- 1600cm^2 WS 900cm, AR 5.05, Vol 2L
    • X1950- 1950 cm^2, WS 1000cm, AR 5.13, Vol 2.5L
Set includes: Front wing, wing covers.

FUSION ALLOY MAST

HIGH PERFORMANCE – DURABILITY

SIZES: 40 / 70 / 90 CM MAST

The Fusion Alloy mast is constructed from extruded aircraft grade aluminum that result in an incredibly rigid & hydrodynamic structure. Helicoil inserts eliminate salt water corrosion around the screw connection points. It seamlessly integrates into all 9cm industry-standard foil boxes.

  • Choice of fixed top plate or FQR (Foil Quick Release)
  • 3-screw connection for superior rigidity
  • Aircraft grade extruded, anodized 6061-T6 aluminum
  • Precision tapered fuse-to-mast connection for optimal rigidity
  • Helicoil inserts minimizes corrosion and provides long lasting durability

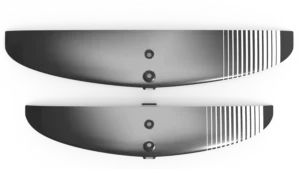

X SERIES REAR STABILIZER

HIGH PERFORMANCE – LIGHT WEIGHT Sizes: XS220 / XS300 The best part of the last 5 years has been the rise in hybrid development and crossover technology amongst sports. No where is this more evident than in foil boarding. The hydrofoil has become the common denominator in all of the surf and wind sports today. Therefore, it reasons that its important to have a hydro wing-set capable of crossing between sporting genres with flawless performance and capability. Enter the X Series™ wings from Cabrinha. The design of the X Series™ recognizes and exploits the most important features needed in all hydrofoiling genres. Lift, efficiency and control are the three pillars that drive the X Series’ high performance and buttery smooth ride. Through a combination of outlines and wing profiles the X series delivers a smooth lift and stable flight with precise turning and control. The X Series’ efficiency is enhanced by our all new Cab Fusion mast and fuselage ecosystem. The Cab Fusion is a redesign from the bottom up to remove any unwanted ‘play’ in the system while streaming the connection between the wings and the fuselage. The resulting increase in stiffness and reduction in drag puts the X Series wings into an all new class of hydrofoils. DESIGN PROFILE Swept LE, Straight TE, Lean profile, minimal anhedral with downturned tips. WING FEATURES
  • Optimal efficiency and lift
  • Flat center, to downward tips, for perfect balance between locked-in feel and agility
  • Recessed design for minimal drag
  • Full prepreg carbon construction
  • EPS core for superior strength to weight ratio
TECH SPECS
  • 220 cm^2. WS 370.AR 6.4
  • 300cm^2. WS 430, AR 6.4
Set includes: Stabilizer, wing covers, 2pcs m6 ss316 torx Ti coated screws

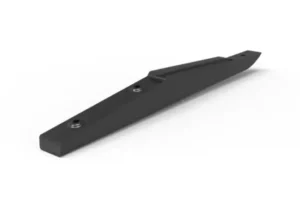

FUSION CARBON REAR FUSELAGE

The Fusion Carbon Fuselage puts performance above all else. The Prepreg Carbon construction gives insane stiffness in a lightweight package. A longer fuselage gives a more locked-in stable ride, while a shorter fuselage increases maneuverability and tighter turning.
  • Full Carbon prepreg construction
  • SS316 M6 inserts
  • Interchangeable fuselage for optimal performance and easy travel
  • Recessed stabilizer mounting surface for minimal drag

Additional information

X Series Front Wing

1950, 1600

X Series Rear Stabilizer

220, 300

Brand
