Foil Drive Fusion and Slingshot One Lock V2 Integrated Mast Bundle

$2,547.90

The Slingshot One-Lock Aluminum Mast is one of the lightest aluminum mast on the market. Constructed with 6061 grade aluminum, the design optimizes aluminum placement for maximum weight savings and stiffness.

The mast’s chord sits at 118mm, achieving a perfect balance between efficiency, stiffness and weight.

This combination delivers direct and precise feedback. At the mast’s foot, our optimized One-Lock collar enhances efficiency and minimizes drag by ensuring smooth water flow from the front wing to the stabilizer, all while holding true to our durability standards.

Brands:

Foil Drive
Slingshot Kiteboarding

Need Help? Contact Us or Call +1 (321) 252-KITE

SKU 26KBC-147300 Categories All Products, E-Foil and Foil Assist, Foil, Foil Assist Units and eFoils Brand: Foil Drive, Slingshot Kiteboarding

Description

The Foil Drive Fusion x Slingshot One-Lock V2 Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with these Slingshot masts for the ultimate hybrid setup.Note: Motor Position is fixed and cannot be adjusted.This bundle includes:

Foil Drive Fusion
Fusion Battery
Foil Drive x Slingshot One-Lock V2 Integrated Mast
Integrated Mast High Power Motor
Foil Drive Barnacle Cable Extender (only included when assist mast height is selected)

Motor Mount PositionAssist – 17 cm: A unique motor position designed for beginner, intermediate, and advanced assisted foilers alike. The Assist motor position is ideal for hybrid foiling, where riders use short bursts of power to get up on foil before harnessing natural energy from swell or wind to sustain flight once the motor exits the water.The motor height lets you “surface motor” out to the lineup or travel upwind while keeping the motor tucked close to the board, where it stays out of the way once you’re riding. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control.eFoil: Designed for leisure foiling, flatwater cruising, and experimenting with your foils in new ways. Cruise at sunset or push the limits of your setup in a controlled environment. With the motor positioned deeper in the water for consistent propulsion, the eFoil configuration is a versatile way to extend what’s possible with your Slingshot foils.Tech Specs

Mast length: 18cm
System Nominal Voltage: 43.2V
Battery Capacity Range: 864Wh
Max Thrust: 34kg / 74.9lbs
Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
Dimensions with Battery: L658 x W125 x H54mm
Peak Horsepower: 2155W/2.89hp
Sustained Horsepower: 1750W/2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

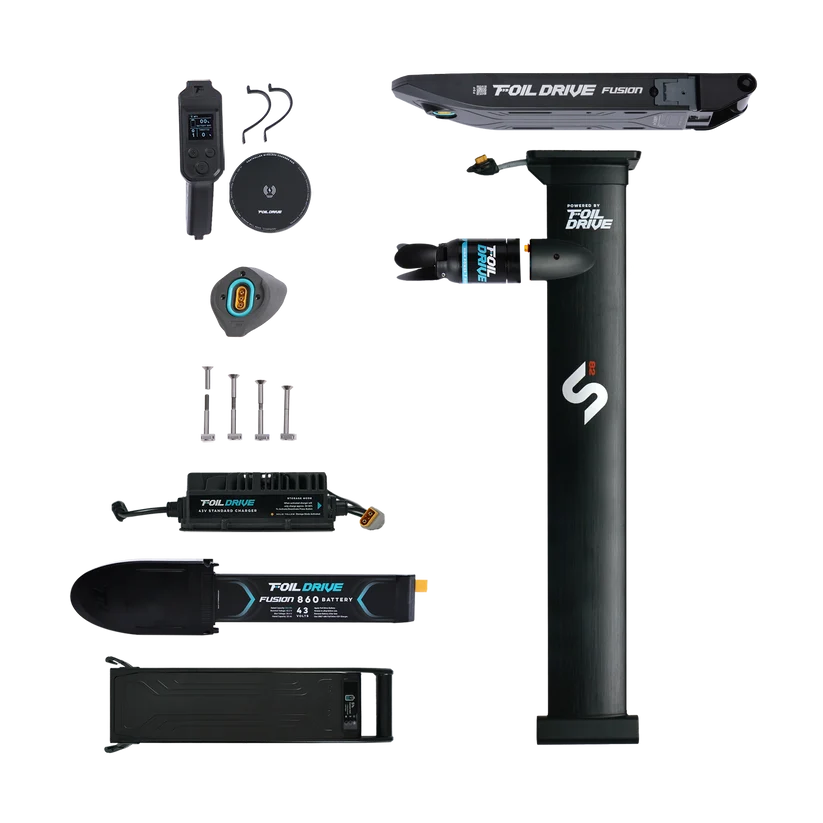

What’s IncludedFoil Drive FusionFusion 860 BatterySlingshot One-Lock V2 Integrated MastIntegrated Mast High Power MotorUS AC LeadV3 Controller with Bump Guard InstalledUniversal Motor Pod43V Standard Charger 12amp with selected AC Cable1x Mast Cable Guide 23cm2x Mast Foam Tracks Guides1x Tool Caddy (Inside Fusion)4x Titanium T40 M7 Split Bolts Silver1x Medium Sticker PackController Accessories Case– Charge Pad and Cable– Bump Guard Variation– Wrist Leash– 1.5mm Allen Key for Bump Guard Removal Tools and Hardware– 1x T40 Driver– 1x T30 Driver– 1x 2.5mm Black Titanium Driver– 1x Pick Tool– 2x 15g Battery Grease– 2x Nose Cone Rocker Pads– 3x M4 10mm Titanium Motor Plug Bolts– 1x Anode Replacement Kit– 1x Replacement Electronics Box O-Ring (Blue)– 1x Replacement Motor Cable O-Ring (Blue)– 1x Replacement Motor Cable O-Ring (Red)– 1x Microfibre Towel
