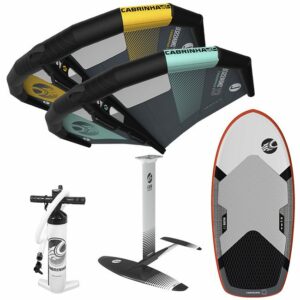

What’s included in this package?
- 2021 4’8, 58L Macro
- Choice of TWO Crosswing X3 Wings
- Choice of Fusion Alloy Mast with Helicoil Size 70cm OR 90cm
- Choice of X Series Front Wing (1600, 1300, or 950)
- Choice of X Series Rear Stabilizer (220 or 300)

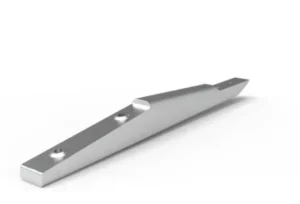

- Fusion Carbon Rear Fuselage 346
- Fusion Hybrid Socket Plate Mount
- (OPTIONAL) Add a wetsuit of your choice to this package for only an additional $130!
Wetsuit Options:
DAKINE MENS QUANTUM CHEST ZIP 5/4/3MM
DAKINE MENS MISSION CHEST ZIP FULL 4/3MM
DAKINE MENS QUANTUM BACK ZIP 3/2MM GBS
DAKINE MEN’S CYCLONE ZIP FREE 2/2MM FULL
DAKINE WOMENS CYCLONE ZIP FREE FULL 3/2MM
DAKINE WOMENS MISSION CHEST ZIP FULL
DAKINE WOMENS HOODED QUANTUM CHEST ZIP WETSUIT
2021 Macro
DESCRIPTION
The Macro is the foil board that has risen to meet the moment.
The Macro is an incredibly compact shape which combines the perfect ratio of length, width, and volume to deliver a performance foil board that is dedicated to the sport of wing foiling.
What makes the Macro so incredible for wing foiling is its quick to fly platform. We’ve optimized the volume distribution to put the float exactly where it’s needed to quickly fly while creating a balanced and nimble board once you are up on the foil. The short but wide platform makes it easy to take off in the standing or kneeling position.
The Macro has a subtle concave deck to cradle your feet with or without straps and the tail has a release point which aids in pumping the board whether you are on or off the water.
It has a double concave section in the nose to assist with easy take off and to aid in the recovery during touch downs.
Once flying, the Macro is light, nimble and maneuverable. Ready to respond to your every command.
DESIGN PROFILE
Foil specific board with focus on maneuverability and easy launch
FEATURES
- Short compact design
- Double concave to flat bottom
- Concave deck for positive board control when strapless
- Kick Tail for easier pumping and earlier flight
- EPS core, light weight and buoyant
- Durable composite sandwich construction
- Carbon innegra deck construction with full PVC deck reinforcement
- 3 or 2 strap insert configuration
- Standard 9cm adjustable foil mount
Included with the board: M8 Tnuts, full deck pad. (NOTE: Straps sold separately).
Design: Pete Cabrinha

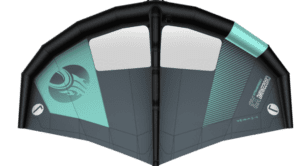

Crosswing X3
WING SURF / FREERIDE
Already into its 3rd iteration, the Crosswing X3 sets a new standard in efficiency and on-demand power.
Detailed work has been done by Cabrinha’s R&D team into the wing profile and new radial canopy panel layout to achieve our most high-performing and reactive wing to date.
Through an increased leading edge diameter with load distributing centre section construction, we have created an exceptionally stiff framework, which is further enhanced by the X3’s innovative double strut. This framework gives the rider the ultimate feeling in efficiency and performance both in the lighter winds, where pumping and efficiency is required, and also in higher winds where stability and control are greatly increased.
Strategic window placements with the combination of the double strut, allow for a wide field of view.
Whether you are boosting to new heights or simply relaxing into your ride, take advantage of all of the X3’s new cutting edge technical attributes.
DESIGN PROFILE
Leading edge inflatable dihedral with powerful profile and “ultra rigid double strut”
FEATURES
- NEW Ergonomic widespan handle layout for micro adjustment/trim
- NEW: Increased LE diameter with load distributing centre section for improved stiffness & canopy tension
- NEW: improved low end
- NEW: HD large diameter closing seam construction
- NEW: Improved balance, linear power delivery and upwind drive
- NEW: Ultra rigid flared Double Strut for aerofoil support and improved response
- NEW: Radial canopy layout for improved response and stiffness High tenacity dacron LE Sprint inflate valve Nano tech ripstop Safety wrist leash included Kevlar wing tip reinforcement Harness line attachment points
X Series Front Wing
- Loose and agile feel for superior maneuverability
- Optimal efficiency and lift
- Integrated fuselage with tapered fit
- Incredible torsional stiffness and minimum drag
- Full prepreg carbon construction
- EPS core for superior strength to weight ratio
- Moderate anhedral for a more efficient lift platform
- Draft forward profile for a forgiving ride and early predictable lift
Set includes:
Front wing, wing covers.
Specs
- X950- 950cm^2, WS 630mm, AR 4.2, Vol 1.18L
- X1300- 1300cm^2, WS 780mm, AR 4.7, Vol 1.6L
- X1600- 1600cm^2 WS 900mm, AR 5.05, Vol 2L
X Series Rear Stabilizers
- Optimal efficiency and lift
- Flat center, to downward tips, for perfect balance between locked-in feel and agility
- Recessed design for minimal drag
- Full prepreg carbon construction
- EPS core for superior strength to weight ratio
Tech Specs
- 220 cm^2. WS 370.AR 6.4
- 300cm^2. WS 430, AR 6.4
Set includes:
Stabilizer, wing covers, 2pcs m6 ss316 torx Ti coated screws
Fusion Alloy Masts
The Fusion Alloy mast is constructed from extruded aircraft grade aluminium that result in an incredibly rigid & hydrodynamic structure.
Helicoil inserts eliminate salt water corrosion around the screw connection points. It seamlessly integrates into all 9cm industry-standard foil boxes.
FEATURES:
- Choice of fixed top plate or FQR (Foil Quick Release)
- 3-screw connection for superior rigidity
- Aircraft grade extruded, anodized 6061-T6 aluminum
- Precision tapered fuse-to-mast connection for optimal rigidity
- Helicoil inserts minimizes corrosion and provides long lasting durability
